RacKeeper® Mezzanine Gate

Need to maintain access to elevated areas without compromising safety?

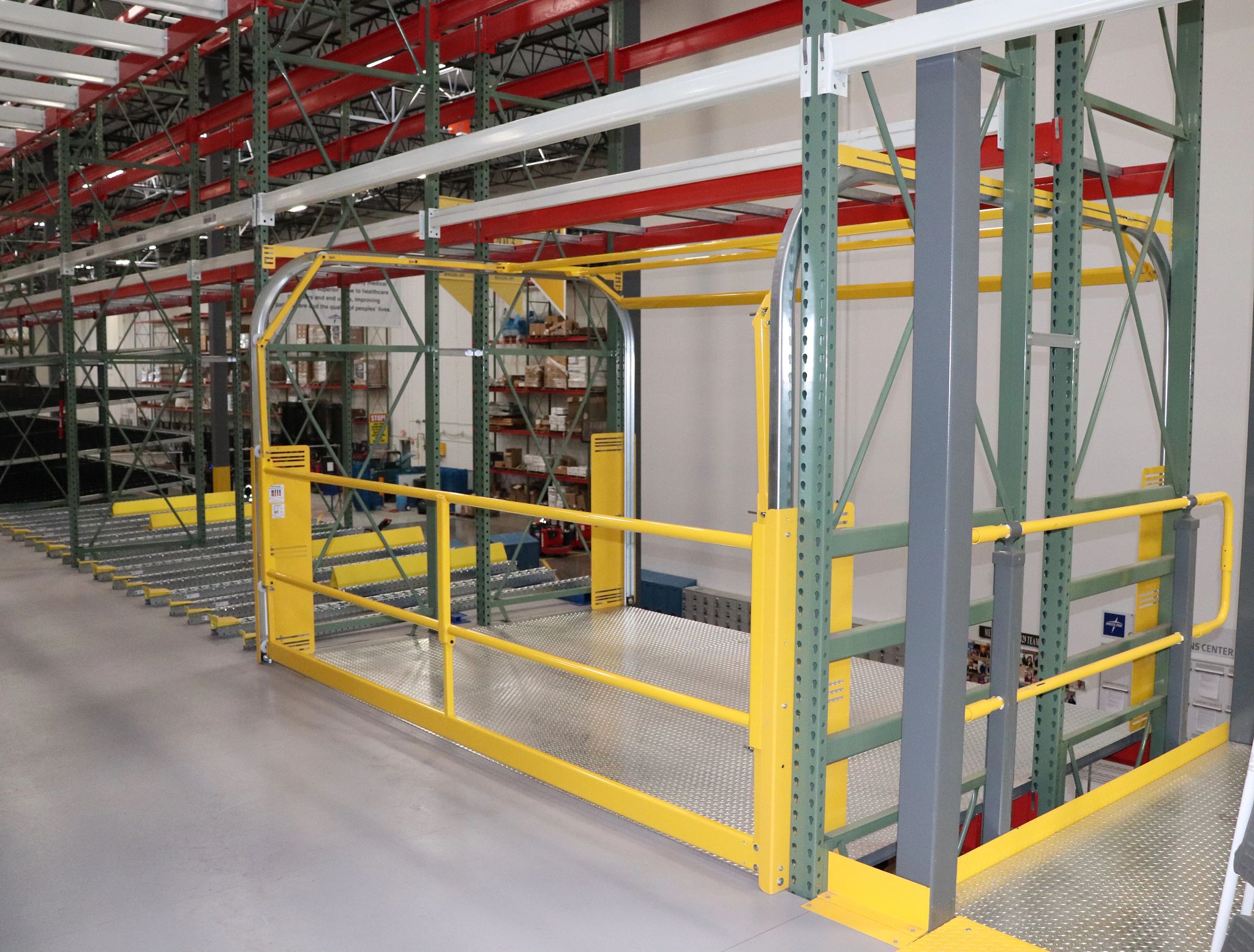

Multi-level racking systems give facilities more usable storage space — but expanding ‘up’ also comes with more hazardous conditions. RacKeeper is the pallet rack-supported mezzanine gate that brings safety and efficiency together in equal measure. Its design is customizable to meet your unique facility needs.



Does your mezzanine safety solution ensure full-time coverage at the edge?

Netting doesn’t always provide reliable fall protection for elevated platforms. Unlinked inner and outer gates can both be left open. RacKeeper’s link bar creates a controlled access area where both gates cannot be open at the same time — to help avoid a false sense of security.

• OSHA compliance. Meets OSHA standard 1910.28(b)(1) requiring employers to provide fall protection for personnel on walking-working surfaces 4'0" (1200 mm) or more above the lower level. Also covers OSHA standard 1910.29(k)(1) requiring employers to ensure toeboards are used on overhead walking-working surface to prevent objects from falling and injuring employees below. 
• ANSI compliance. Complies with ANSI 2009 standard section 6.4.3 published by the Storage Equipment Manufacturers Associations, which requires elevated surfaces to always be protected by guards. “Gates that swing open, slide open or lift out leaving an unprotected opening in the guarding are not acceptable." 
• IBC compliance. Meets requirements for IBC 1015.2, which states, “Guards shall be located along open-sided walking surfaces, including mezzanines, equipment platforms, aisles, stairs, ramps and landings that are located more than 30 inches (762 mm) measured vertically to the floor or grade below at any point within 36 inches (914 mm) horizontally to the edge of the open side.”  

Additional Rite-Hite® Barrier Solutions

For elevated platforms:

• GateKeeper® Mezzanine Safety Gate

For cost-effective traffic detection that magnetically mounts to racking:

• Safe-T-Vu® Warning System

For forklift wall protection:

• Sure-Stop™ Barrier

For in-plant separation and pedestrian protection:

• Safe-T-Gate Vertical

To prevent high-stacked product from falling:

• GuardRite HDXL and HDXL Plus Polymer Barrier

For light-duty fall protection at the loading dock:

• Dok-Guardian LD and LDXL Barrier

How well does your racking system protect workers above and below?

Securing open areas is challenging within multilevel pick modules or any other elevated work area that requires fall protection within your existing racking system. RacKeeper helps protect workers in mezzanines from falling — and protect those below from falling materials.

Product Specifications

• 3″ (75 mm) track and nylon rollers for smooth operation, no chains or cables
• 10-gauge powder coat yellow steel frame
• Rail heights of 21″ (535 mm) and 42″ (1065 mm).
• Toeboard prevents material from accidentally being pushed from an elevated space to a lower level
• Accommodates rack sizes ranging from 4′0″ to 13′6″ wide, 5′0″ to 9′0″ high and 3′0″ to 8′6″ deep
• Unique link bar design ensures both the inner and outer gates work in unison
• Mounting brackets for full-time track protection and flexibility during installation
• Steel side-frames for built in track protection
• Angle brackets available for bolting to front surface of upright

Will RacKeeper help make your unique facility safer for material loading and unloading?

RacKeeper’s design makes it easily implemented in most elevated areas with access on two sides, and any elevated work area that requires fall protection within a racking system:

• Multi-level racking systems
• Mezzanines
• Elevated platforms
• Pallet drop areas
• Along perimeter walls or racking

Any industry or type of facility will benefit from this solution, including:

• Warehouses and Distribution centers
• Manufacturing and production facilities
• Automotive facilities
• Food & Beverage facilities
• Pulp, Paper and Packaging facilities

Curious if RacKeeper is a fit in your facility? Contact a Rite-Hite representative today.
